# 테이블 설명

{% file src="<https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FbJKvaLVkwQ7gbz73Xvk9%2F%ED%95%91%EA%B1%B0%ED%91%B8%EC%8B%9C%20Agent%20%ED%85%8C%EC%9D%B4%EB%B8%94%20%EC%84%A4%EB%AA%85(V4.7.0).xlsx?alt=media&token=8a3c4dfd-450e-4b1a-a6d2-24d557f9f859>" %}

![](https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FOD5WgK1jk5l66KzQ0nVh%2FAGENT_COVER.png?alt=media\&token=750186e7-c524-4676-a46d-4e9939c179e9)

## Mysql, Mariadb

#### Master - AGPUSH\_MASTER 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2F7q5hjYg01wPKrNWUqRtI%2FAGPUSH_MASTER.jpg?alt=media&#x26;token=a20f5fdd-63ec-48ea-81d6-85ef4d8b3eaf" alt=""><figcaption></figcaption></figure>

#### Queue - AGPUSH\_QUEUE 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2Fb9Q4lKciPw53apvscTFn%2FAGPUSH_QUEUE.jpg?alt=media&#x26;token=1c4ba8e7-0ebc-490c-8bda-65008dcbd39c" alt=""><figcaption></figcaption></figure>

#### Result - AGPUSH\_RESULT\_YYYYMM 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FDbx2CaR3WveJh81VFpln%2FAGPUSH_RESULT_YYYYMM.jpg?alt=media&#x26;token=9ddc0064-e8e9-422b-a879-7e5ebf4ea04a" alt=""><figcaption></figcaption></figure>

## mssql

#### Master - AGPUSH\_MASTER 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FmtsCMAgt3Q87o2tevNmH%2FAGPUSH_MASTER.jpg?alt=media&#x26;token=4fc9280d-b7b5-4de2-b21b-21d42d74e6e2" alt=""><figcaption></figcaption></figure>

#### Queue - AGPUSH\_QUEUE 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FnaVqwDNWvv3EcQDLbmOi%2FAGPUSH_QUEUE.jpg?alt=media&#x26;token=dd2648c0-5739-4268-b7fe-70237644d159" alt=""><figcaption></figcaption></figure>

#### Result - AGPUSH\_RESULT\_YYYYMM 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FncjHVOBgSJ8nnPYlNYaM%2FAGPUSH_RESULT_YYYYMM.jpg?alt=media&#x26;token=aec8c3b9-e965-41f8-8a8a-5c0dcd6a5f06" alt=""><figcaption></figcaption></figure>

## edb, postgreSQL

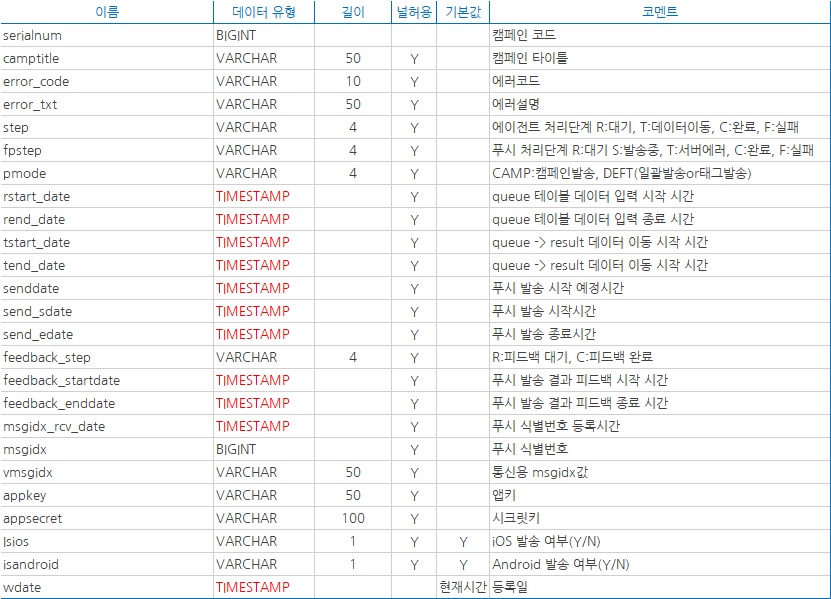

#### Master - AGPUSH\_MASTER 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FYsZvOd7FIRQf6IF5yna1%2FAGPUSH_MASTER.jpg?alt=media&#x26;token=90351aa8-c5f0-415e-9170-029fe111b670" alt=""><figcaption></figcaption></figure>

#### Queue - AGPUSH\_QUEUE 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FqH25n5V4mVgTZE7Uc8gW%2FAGPUSH_QUEUE.jpg?alt=media&#x26;token=a9e54048-243f-433e-b645-3dce53d2ccbd" alt=""><figcaption></figcaption></figure>

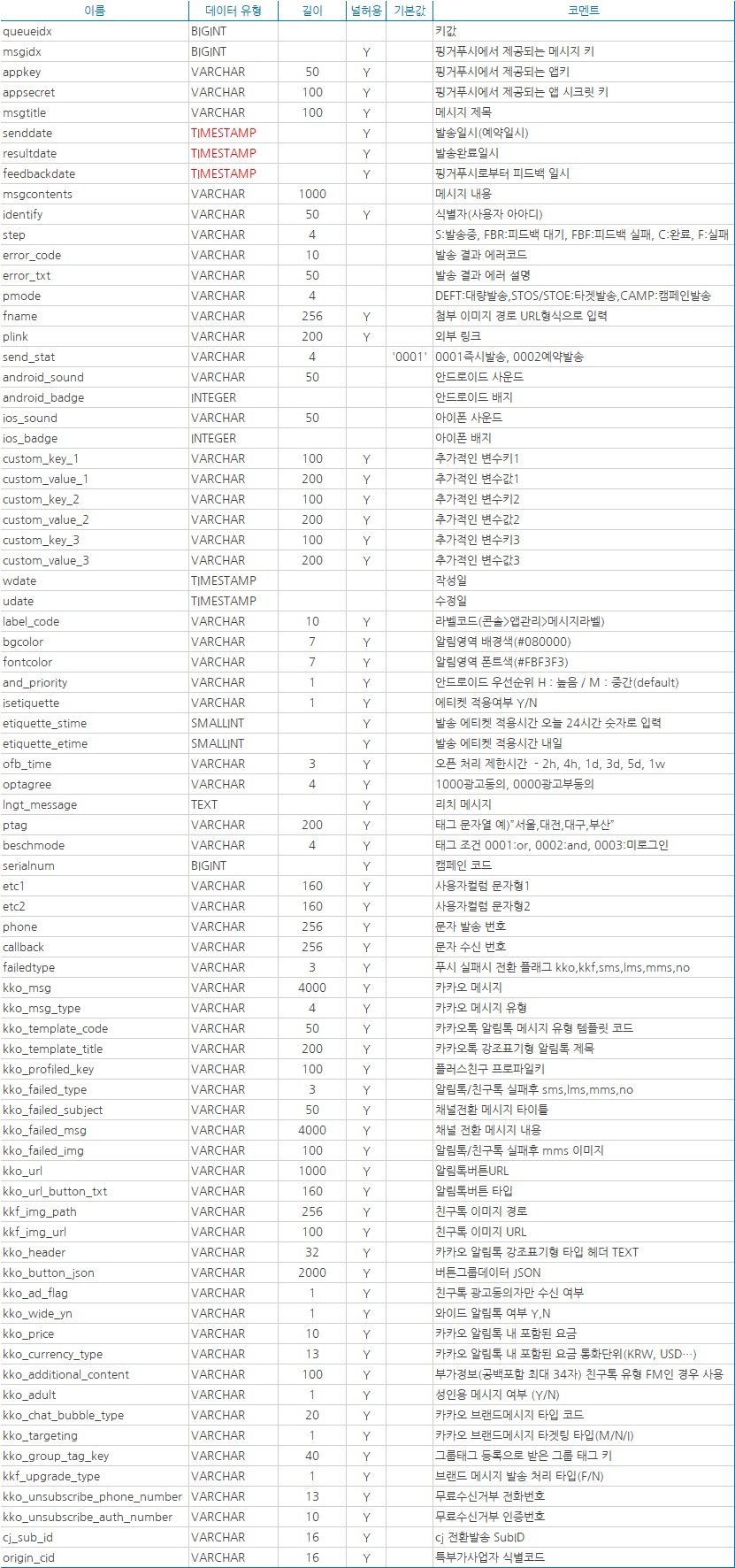

#### Result - AGPUSH\_RESULT\_YYYYMM 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FSLUe8ACQmHZsN7iTZsQr%2FAGPUSH_RESULT_YYYYMM.jpg?alt=media&#x26;token=6f034816-a506-48d8-91f7-f796ef4d3a8e" alt=""><figcaption></figcaption></figure>

## oracle, tibero

#### Master - AGPUSH\_MASTER 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2FDP5k3WJWeVuBF4EUYrC8%2FAGPUSH_MASTER.jpg?alt=media&#x26;token=0818bc5e-6142-473e-a89e-d0c6f12b83e3" alt=""><figcaption></figcaption></figure>

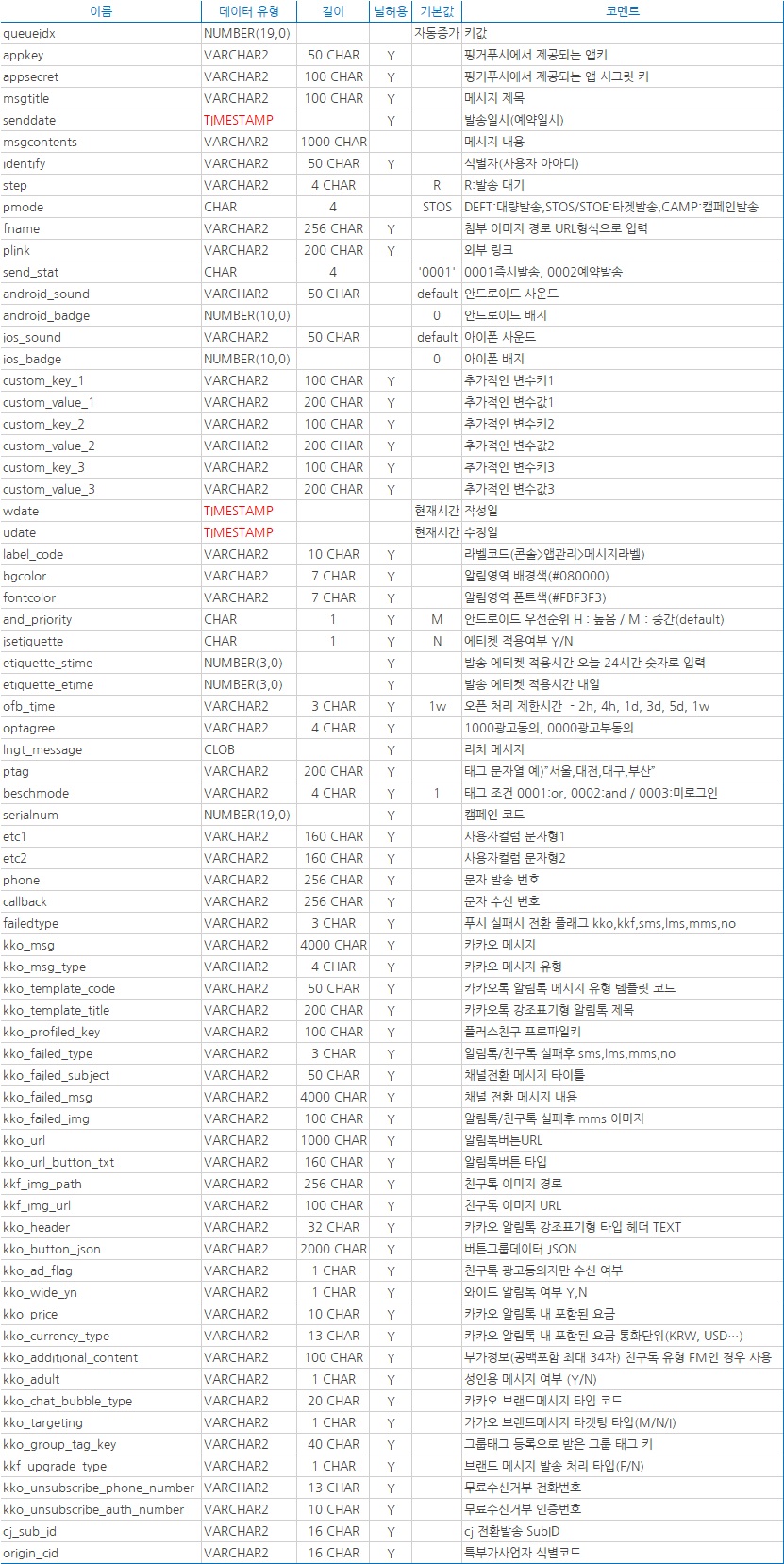

#### Queue - AGPUSH\_QUEUE 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2F8jnYm4H0PwVCP51avb7i%2FAGPUSH_QUEUE.jpg?alt=media&#x26;token=689faf7c-3737-4ab9-9cdb-1f058451abb7" alt=""><figcaption></figcaption></figure>

#### Result - AGPUSH\_RESULT\_YYYYMM 테이블

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2F9Y1adZferDu0Fw24dEHl%2FAGPUSH_RESULT_YYYYMM.jpg?alt=media&#x26;token=4e5e9503-dccb-45d0-bb95-3c87fe761c5c" alt=""><figcaption></figcaption></figure>

## ERROR\_CODE

#### Result - TBL\_FINGERPUSH\_RESULT.error\_code 값 설명

<figure><img src="https://1606198054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ff5XCUiUhwc0T57hW21TH%2Fuploads%2Fyb7brGDdKoRX0cZK8kfw%2Ferrorcode.png?alt=media&#x26;token=e04645ec-eab4-4b09-ad7f-abc609a13d42" alt=""><figcaption></figcaption></figure>
